MANUAL
|
|
STEAM ROOM
DISPENSER
|
PLEASE READ THIS
MANUAL CARFULLY BEFORE USE.
http://www.winspa.cn
info@winspa.cn
WINSPA STEAM ROOM
DISPENSER
Operation of
Dispenser
----------------------------------------3
Brief
introduction
----------------------------------------------3
Optional
feature
----------------------------------------------4
Instruction of
Use
----------------------------------------4
Operation
Modes
----------------------------------------------5
(MODE
1)
----------------------------------------------5
(MODE
2)
----------------------------------------------6
(MODE
3)
----------------------------------------------7
Enter
Mode
----------------------------------------------9
Changing
the
Values
----------------------------------------------9
Installation and
Connection
-----------------------------------------9
Installation
----------------------------------------------9
Connection
of Fragrance
Pump
---------------------------------------------10
Disinfections
Plumbing
---------------------------------------------11
Spray
Nozzle
---------------------------------------------12
Power
Wiring
---------------------------------------------12
Warning
Light
---------------------------------------------13
Further
Information
----------------------------------------13
Operation of Dispenser
Brief Introduction
The dispenser is a dual
dispenser with the purpose of dispensing fragrance（Mode 1） during the operation of
the steam room and disinfecting the steam room after use (Mode 2 and Mode 3).
The dispenser is
designed to be used with any WinSpa steam generator models. When installed and
connected, the dispenser will operate automatically with the operation of steam
generator.

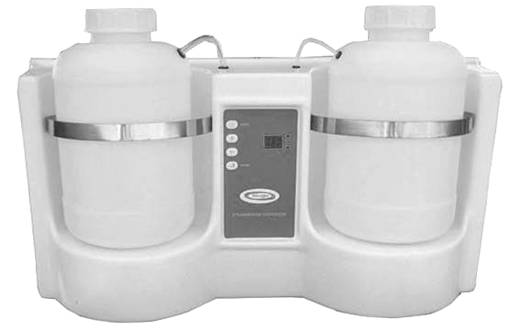

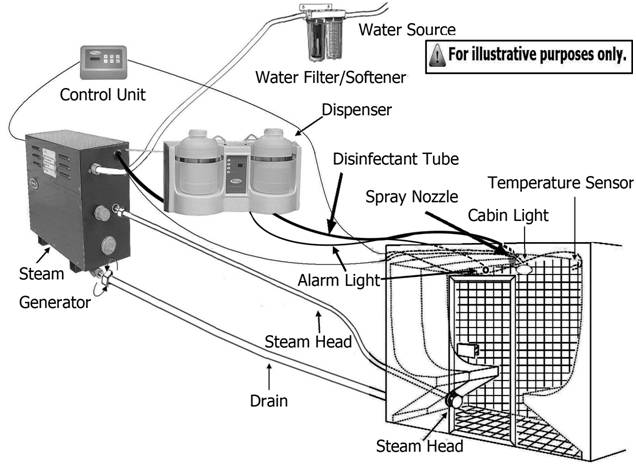

Figure 1
When generator is switched
on, dispenser will dispense the fragrance into the tank of generator, so as the
water is made into steam, the steam incorporates the fragrance. This process
will repeat until the generator is turned off or steam bath session time
expires.
Before switching the
dispenser on make sure there is enough fragrance and disinfectant in the
container. It will take about 10 seconds for every 1 meter of pipeline for
aroma liquid to reach the pump.
Once the generator has
been turned off for a continuous period, the disinfecting side of the dispenser
will begin operation. Two minutes prior to the actual dispenser beginning
operation, a light installed above the door into the steam room will begin to
flash warning the dispenser is about to begin operation. First, the steam room
is sprayed with a disinfection mixture which is allowed to active for a few
minutes before it is washed off with a rinse of clean water.
Optional Feature
An optional extra available with any
installation of the dispenser is to have a heated air blower connected to the
steam room to dry the steam room after the disinfection process.
Instructions of Use

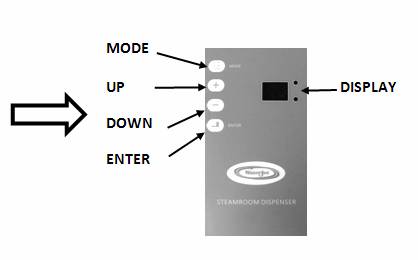

Figure 2
Operation Modes
There are three different
operation modes in the unit:
MODE 1 (= Fragrance Dispensing
Time and Dispensing Time Interval)
MODE 2 (=Disinfectant Dispensing
Time, Rinse Time and Drying Time)
MODE 3 (= Fragrance Dispensing
Start-up Time, Disinfection Start-up Time and Disinfecting Action Time)
To enter different modes and begin set up
by:
Pressing the Mode button ONCE
to enter into MODE 1.
Pressing the Mode button TWICE
to enter into MODE 2.
Pressing Mode button THREE
TIMES continuously can enter into MODE 3 directly.
When enter into operation
modes or after confirmation of the changes and enter into next step by pressing
Enter button, the screen displays
, the user can make
changes in the values easily by pressing up or down buttons.
Pressing
up or down button will increase or decrease the currently displayed value. A
value cannot be in- or decreased above or below its maximum or minimum value.
The up and down buttons
are repetitive. Holding the up or down button will cause the value to in- or
decrease with an increased rate.
To Set Fragrance Dispensing and Dispensing Time Interval (MODE 1)
Press the Mode button once for
more than 2 seconds to enter into MODE 1 and begin set up by following
steps:
|
STEP
|
1:
|
2:
|
|
PURPOSE
|
To set
Fragrance Dispensing Time
|
To set
Fragrance Dispensing Time Interval
|
|
DESCRIPTION
|
Once the
dispenser is activated, it dispenses fragrance into generator tank or steam
room in preset dispensing time.
This process
will repeat until the generator is turned off or steam bath session time
expires.
|
Dispenser
stops dispensing for a time period preset between every fragrance dispensing
repeats, that will lower the consumption of aroma oil and have wonderful
scent steam.
|
|
METHODS
|
When enter
into operation modes, the screen displays . Pressing up or down button will increase or decrease the currently
displayed value. A value cannot be in- or decreased above or below its
maximum or minimum value.
The up and down buttons are repetitive.
Holding the up or down button will cause the value to in- or decrease with an
increased rate.
|
|
TIME RANGE CAN BE SET
|
1~60 seconds
|
1~30 minutes
|
|
DEFAULT SETTING
|
5 seconds
|
15minutes
|
|
REMARKS
|
If no changes
to timing, press Enter button to confirm the values and go to Step 2.
|
If no changes
to timing, press Enter button to confirm the values and exit MODE 1.
|
To Set Disinfectant Dispensing Time,
Rinse Time and Steam Room Drying Time (MODE 2)
Press Mode button twice
to enter into MODE 2 and begin set up by following steps:
|
STEP
|
Ⅰ:
|
Ⅱ:
|
Ⅲ:
|
|
PURPOSE
|
To set
Disinfectant Dispensing Time
|
To set Rinse
Time
|
To set Steam
Room Drying Time
|
|
DESCRIPTION
|
The
disinfection of steam room after use can be done by dispenser automatically.
Once steam generator has been switched off for a continuous period the
dispenser sprays disinfecting agent through a spray nozzle into the steam
room. Set the Disinfectant Dispensing Time to have the dispenser control
dispensing time and a correct disinfectant dosage.
|
The disinfectant sprayed on steam room is to be
washed off with clean water. Set the Rinse Time to control the wash-off time.
|
The steam room can be dried with hot
air brought through the steam room after the disinfection process. This is an
optional feature for the user. To have this feature functioned, a heated air
blower is required to be installed. Only a licensed qualified electrician
should do the Electrical connections.
|
|
METHODS
|
When enter
into operation modes, the screen displays Pressing
up or down button will increase or decrease the currently displayed value. A
value cannot be in- or decreased above or below its maximum or minimum value.
The up and down buttons are repetitive.
Holding the up or down button will cause the value to in- or decrease with an
increased rate.
|
|
TIME RANGE CAN BE SET
|
1~90 seconds
|
1~20 minutes
|
1~30 minutes
|
|
DEFAULT SETTING
|
30 seconds
|
2 minutes
|
1 minutes
|
|
REMARKS
|
If no changes
to timing, press Enter button to confirm the values and go to Step Ⅱ.
|
If no changes
to timing, press Enter button to confirm the values and go to Step Ⅲ.
|
If no changes
to timing, press Enter button to confirm the values and exit Mode 2.
|
|
|
|
|
|
|
To Set Fragrance Dispensing Start-up Time, Disinfection Start-up Time and
Disinfecting Action Time (MODE 3)
Press Mode
button 3 times continuously to enter into MODE 3 and begin set up by following steps:
|
STEP
|
①:
|
②:
|
③:
|
|
PURPOSE
|
To set
Fragrance Dispensing Start-up Time
|
To set
Disinfection Start-up Time
|
To set
Disinfecting Action Time
|
|
DESCRIPTION
|
To minimize
consumption of aroma oil, it is recommended to set a start-up time and time
piece for fragrance dispensing for the dispenser that it will only work after
steam generator is activated. See description in step 2 of Mode 1 for setting
dispensing time interval in page 6.
|
The disinfection
operation must be activated only after steam generator is switched off for a
continuous period. Set the Disinfection Start-up Time to control the start-up
time of steam room disinfections.
An alarm light is supplied with the dispenser unit which is required to be
installed on above the door into the steam room to warn the user about the
disinfections and off the steam room.
Two minutes prior to the actual beginning of disinfectant dispensing
operation, the light will begin to flash warning the dispenser is about to
begin operation.
|
There are few
minutes required for the disinfectant to be allowed active before it is
washed off with a rinse of clean water.
|
|
METHODS
|
When enter
into operation modes, the screen displays  .
Pressing up or down button will increase or decrease the currently
displayed value. A value cannot be in- or decreased above or below its
maximum or minimum value.
The up and down buttons are repetitive.
Holding the up or down button will cause the value to in- or decrease with an
increased rate.
|
|
TIME RANGE CAN BE SET
|
1~15 minutes
|
1~99 minutes
|
1~20 minutes
|
|
DEFAULT SETTING
|
15 minutes
|
90 minutes
|
10 minutes
|
|
REMARKS
|
If no changes
to timing, press Enter button to confirm the values and go to next step or exit setting.
|
Enter
Always press ENTER button
after every setting to confirm / save the changes in the values and to enter
next step.
Changing the values
When enter into operation modes, pressing up or down button in
control unit will increase or decrease the currently displayed value. A value
cannot be in- or decreased above or below its maximum or minimum value.
The up and down buttons are
repetitive. Holding the up or down button will cause the value to in- or
decrease with an increased rate.
If no changes to the setting, press
ENTER button to confirm the changes in the values and to enter next step.
Installation and Connection
Installation
1.

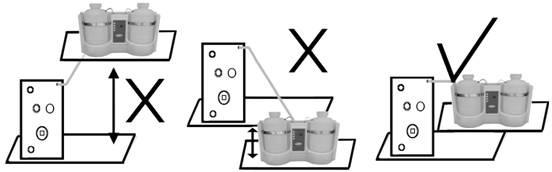

Dispenser should be
installed level or inline with steam generator, at height convenient to be able
to service and fill bottles. Never install the dispenser upper or lower
than steam generator. Figure 3
2.
Fix dispenser to wall using
two screws. Screws to be fixed into wall at distance apart equal to the
slots in the back of the dispensing unit.

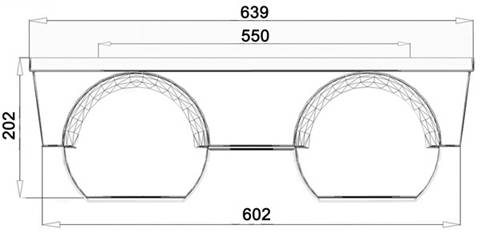

Figure
4 Fixing
Hole Distance
Connection of
Fragrance Pump

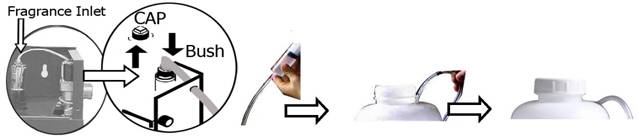

A
small hole is provided at the side of WinSpa generator to allow the tube from
the fragrance pump to enter inside the steam generator. Open the top cover of WinSpa
steam generator and position the tube through the hole and connect to the
socket supplied in the pack. Connect the socket to fragrance inlet in
generator. See figure 5.
The
tube from fragrance pump to generator must be of heat resistance type, rated 1200C or higher insulated copper or plastic tubing.
Remove the plastic tube from the fragrance
bottle and using the syringe provided fill the plastic tube from the bottle
through to where the tube is connected to fragrance inlet. This will purge all
air from the pipeline to avoid a potential airlock forming. Once completed
reposition the tube into the bottle ensure the inlet of the hose is no more
than 10 mm from the bottom of the bottle.Figure 5
When aroma oil is changed, check that the
pipeline is not broken and is full of liquid. It is also recommended to wash
the fragrance container between changes, especially when using different
fragrances.
Use only fragrance meant
for steam generator use. Follow the instructions in the fragrance packing.

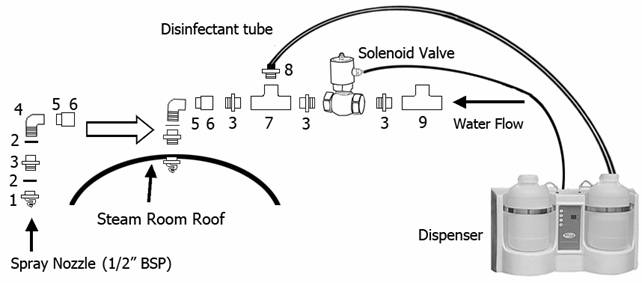

Disinfections Plumbing
All
plumbing has to be installed by a licensed qualified plumber. Plumbing should
be in accordance with national or local codes. Never run the disinfectant pump
dry!
Connect
the disinfections pipeline by:
Ⅰ. Install
tee piece into water supply line feeding the steam generator.
Ⅱ. Install
control valve followed by the solenoid valve (9).
Ⅲ. Connect tee piece (7)
using brass nipple (3) and to center outlet of tee fix the hose connection bush
(8). To the inline outlet of the tee connect brass nipple.
Spray Nozzle
Install in centre of the steam room ceiling.
Larger steam rooms require several sprinklers located to wash down all the
seating and wall areas.
Drill hole through steam room roof panel at position
center of the steam room.
1. Connect the spray nozzle
using S/S cover flange (2), brass nipple (3), S/S cover flange (2) and M+F
elbow (4).
2. Connect from the M+F elbow
to the tee piece with the hose connection bush (8)with copper tube.
Flexible tube can be used if preferred.
3. Insert the end of the
dispenser tube from the disinfecting pump into the bush. To connect just push
the tube into the fitting.
4. Repeat the purging process
as for the fragrance pump.
Figure 6
Power Wiring
All electrical connections must be performed by a licensed
qualified electrician. All wires from dispenser have been labeled:
a) Power supply: This cable can be
connected to power supply by separate power point fitted to wall at location of
dispenser or connected through power supply connection of steam generator.
b) Signal wire: This wire to be attached
to the signal wire which is pre-connected to the steam generator.
c) Alarm wire: This wire to be connected
to an alarm light supplied in the pack with dispenser unit.
d) Valve wire: This cable is to be
connected to the solenoid valve which operates the water supply to the spray
nozzle.
Warning Light
The light should
be installed outside the steam
room, just above the door. 2
minutes before disinfectant washing down starts, using the fluid in the
container, the warning light on above steam room door will flash and keep
flashing from beginning to the end of disinfection. The light will be switched
off automatically after steam room washing down finished.
Further Information
-
In public facilities it
is vital that Dispenser is installed out of reach of the general public, for
example in a well-ventilated, locked room or cupboard, so that no unauthorized
person can alter the switch, pour unsuitable liquids into the container etc.
-
When Disinfection is in
progress, the steam room door must be closed and nobody may remain in the steam
room.
-
The steam room floor
and floor drain must be cleaned regularly. Dispenser carries out washing down
and disinfection, and complements carefull manual cleaning to keep the steam
bath hygienic and fresh.
-
The disinfection side
of Steam Room Dispenser is designed to start only after the bath is finished so
that neither disinfection nor washing down can take place while the steam room
is in use. If steam generator is switched on again during the wait period of
disinfection, the disinfection will not start but fragrance dispensing starts
and repeat as preset.
-
WARNING! Liquids which are inflammable or damaging
to health must not be used.
-
NOTE! Some plastic floor and wall
materials may discolor on direct contact with certain disinfectants. First test
the disinfectant you intend to use on a separate piece of the floor or wall
material used in the steam room.
www.winspa.cn
info@winspa.cn
Subject to change without prior
notice
